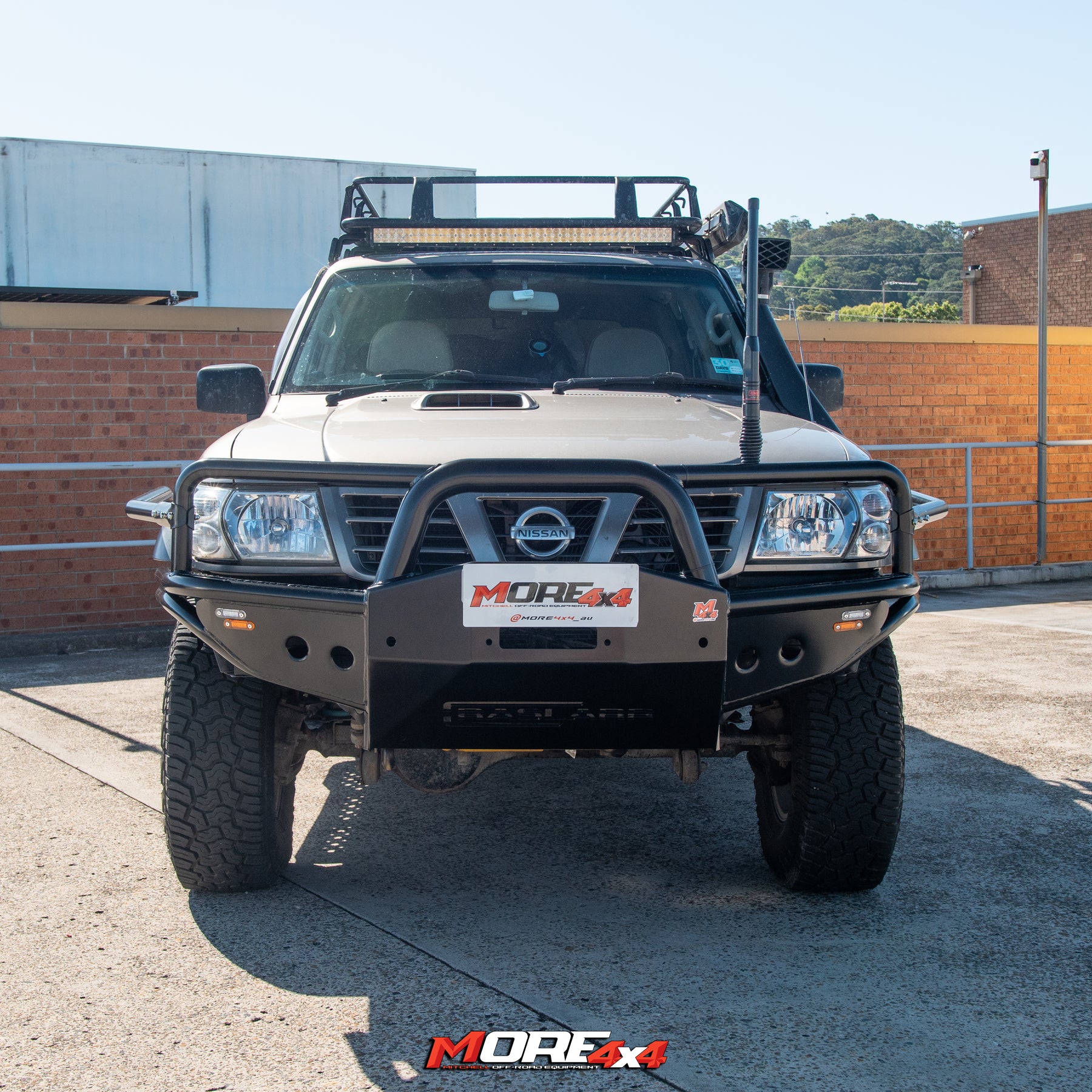

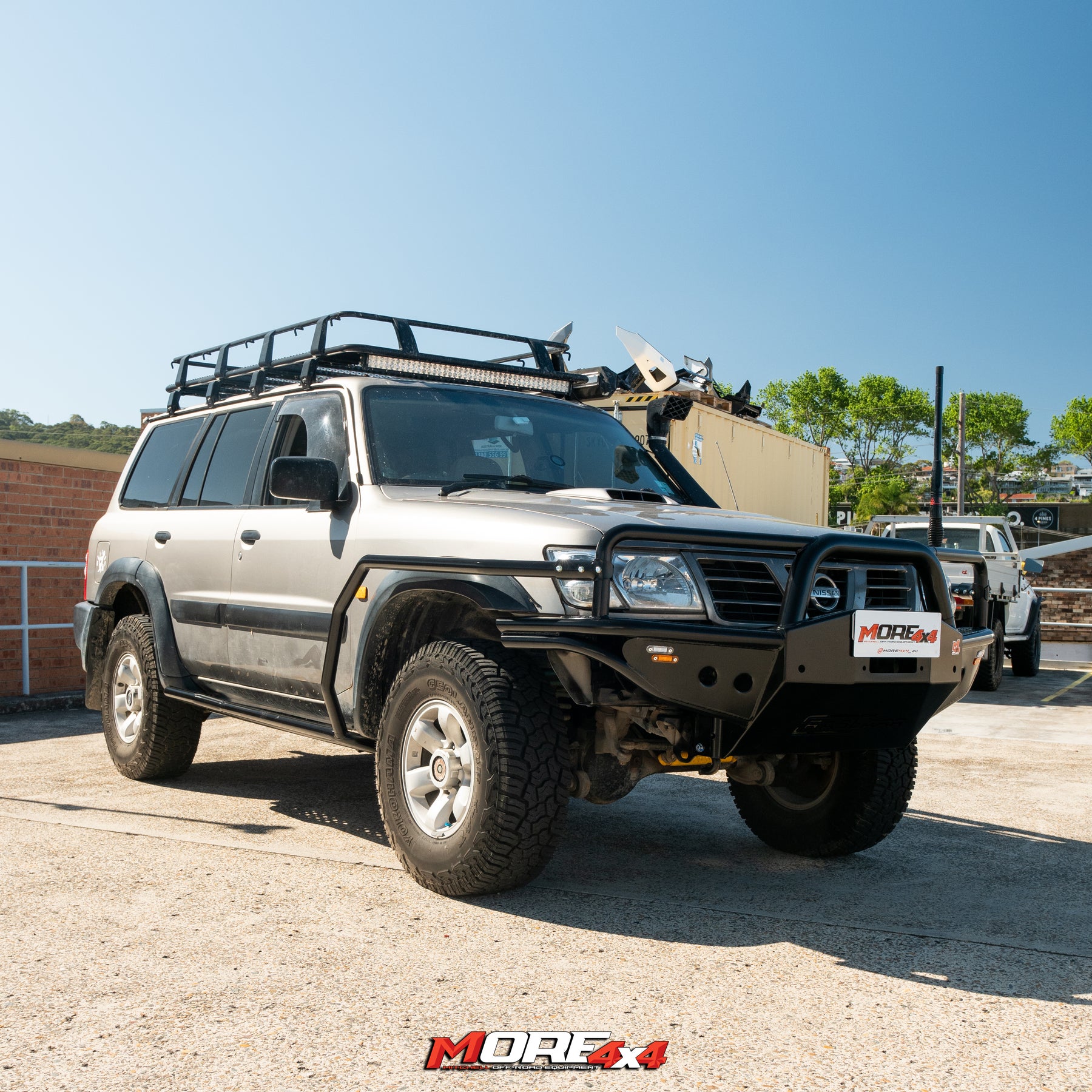

- Suits: All years & series
- These are interchangeable throughout the Series
- Capable of carrying low mount winches.
- Can be made to suit standard high mount winches.
- Centre pan will be notched to allow for high mount.
- Ability to mount spotlights in centre hoop will be removed
- Extended drum high mount winches will not work.
- Raised centre pan will fit up to 6” spotlights within centre hoop.
- Any larger lights will sit slightly in front

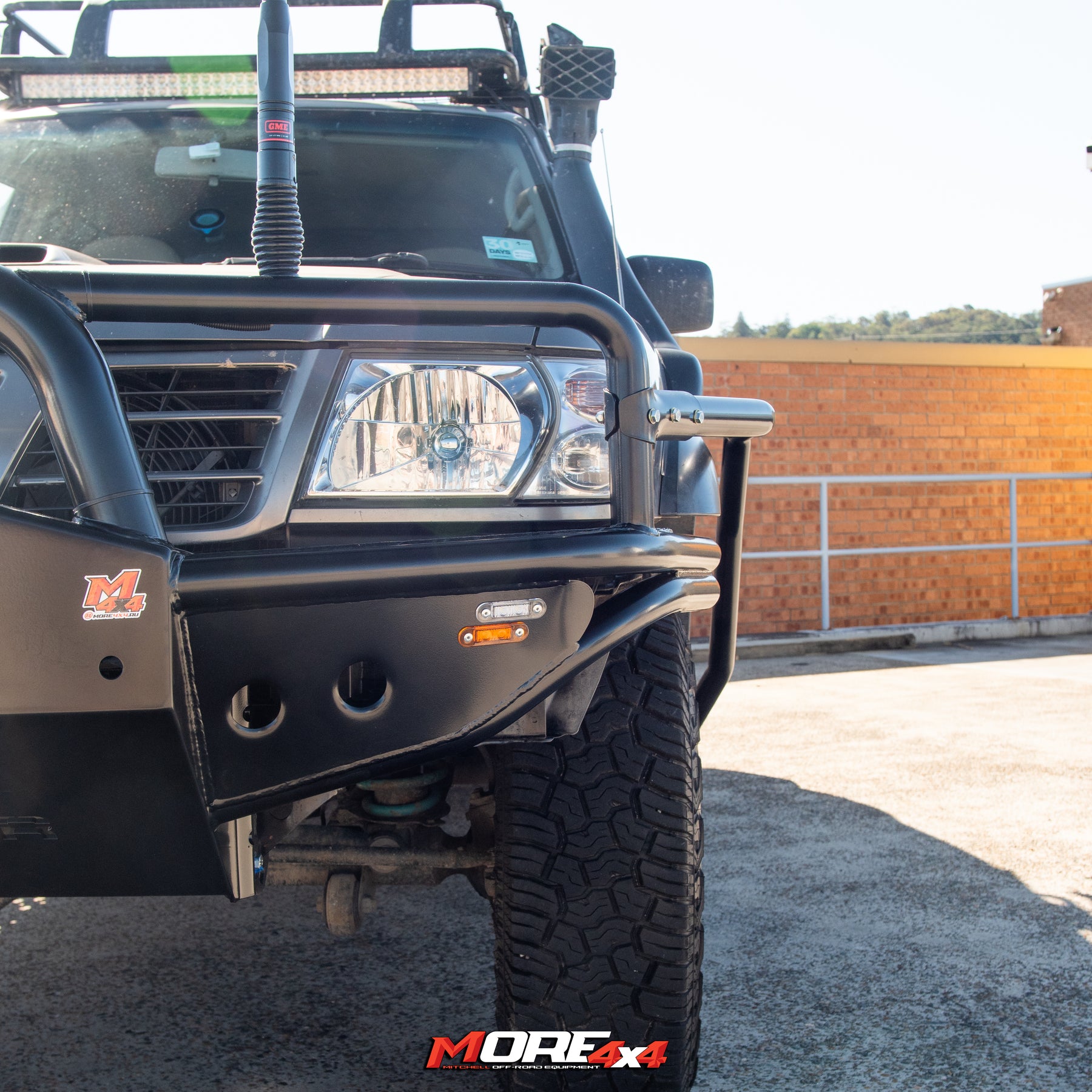

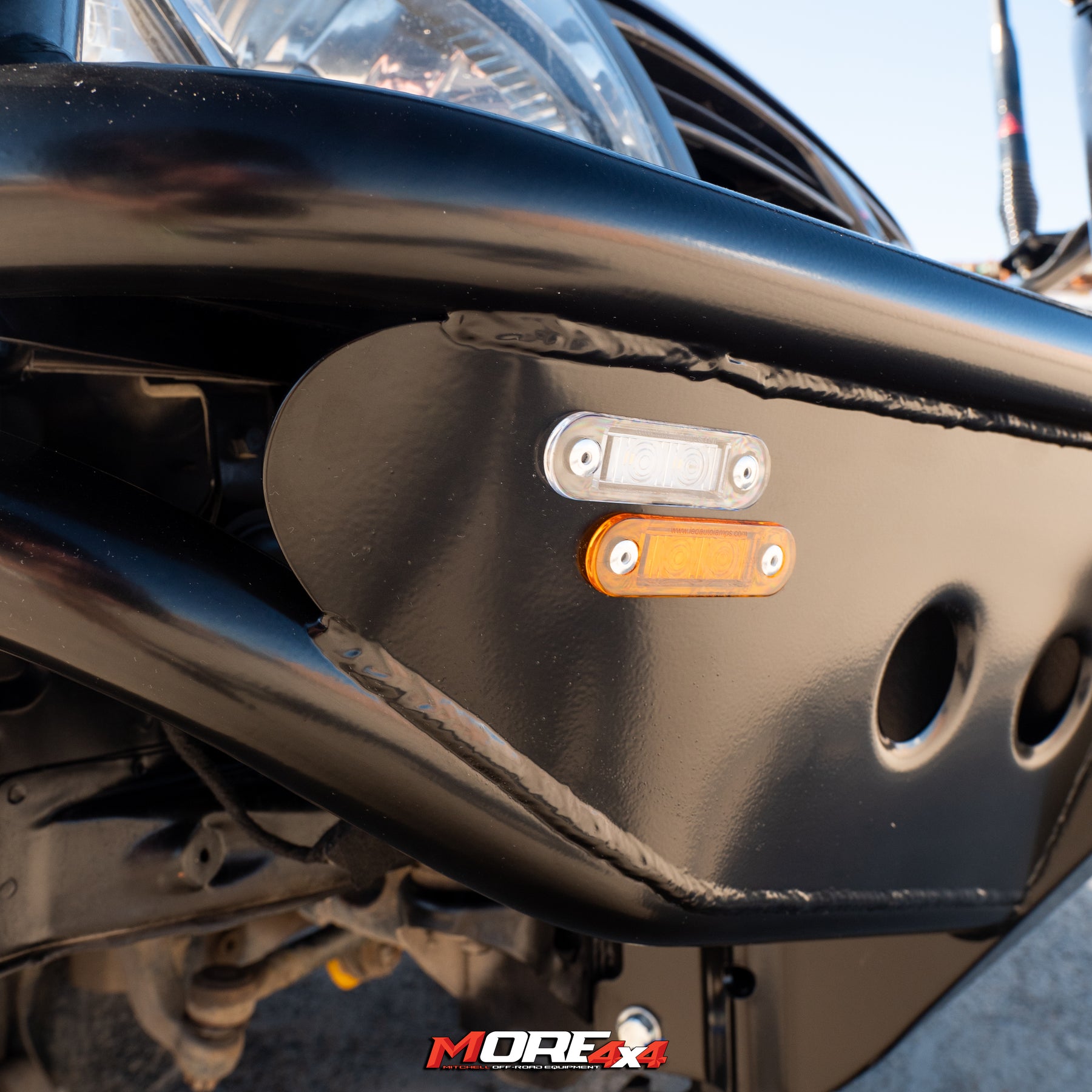

- Comes standard with parker and indicator lights.
- ADR compliant from delivery and comes with a compliance sticker.

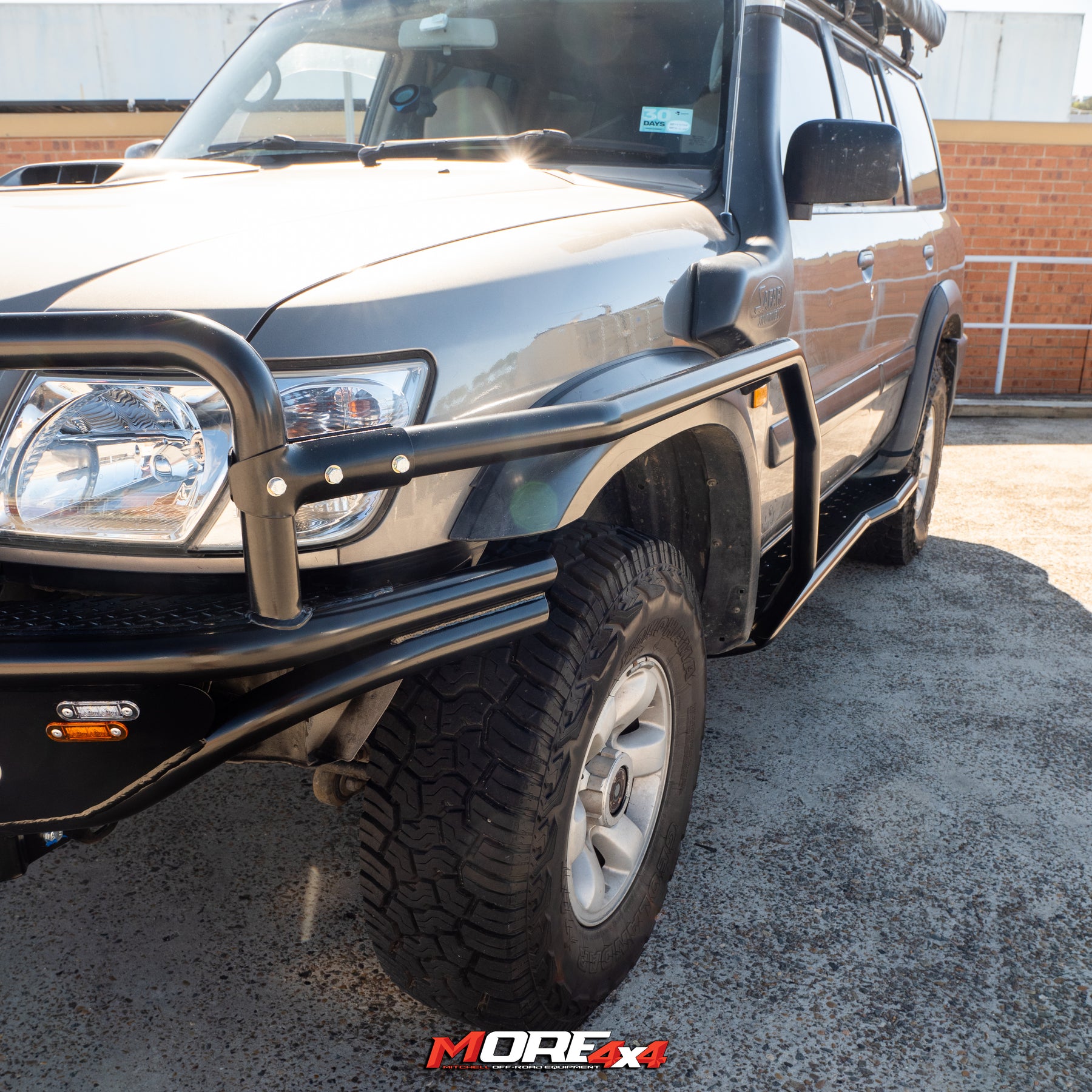

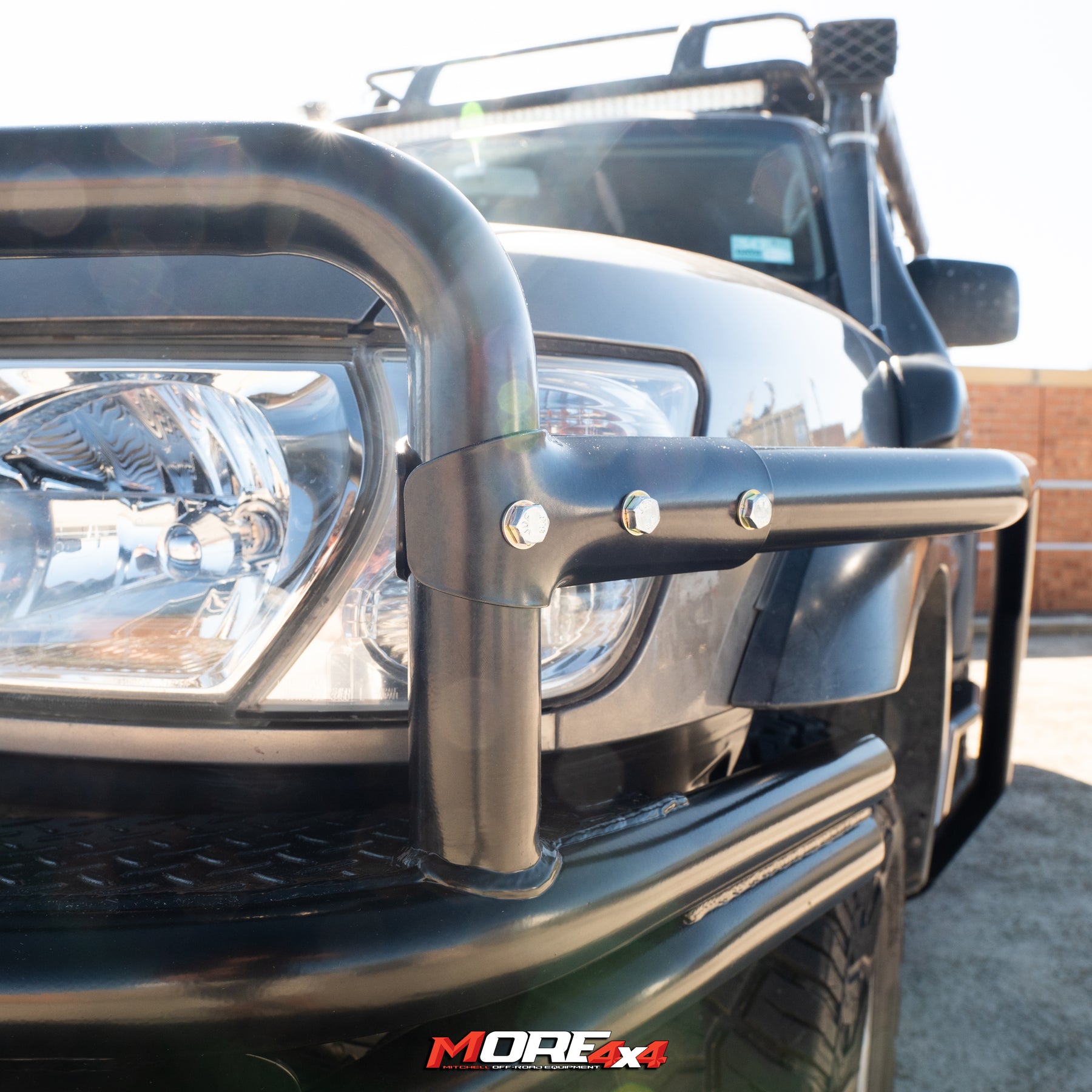

- The headlight hoops are made from 50mm OD Tube with 3.2mm thickness.
- The centre hoop is made from 75mm OD tube with 3.2mm thickness.
- The bash plate and centre pan are made from 4mm steel.
- 2 slotted aerial tabs positioned on LHS hoop.
- 20mm laser cut holes to allow for fitment of 20mm eyebolt recovery hooks when required.
- Ensure these are rated hooks that you are fitting.
- Comes standard sandblasted, zinc primed & satin black powder coated
- Comes with all new hardware to mount your product.
- Colour coding options are available
- Manufactured all in-house at our factories in Lilydale VIC 3140
WEIGHT OF PRODUCT: 55kgs (approximately)
