RUNVA Winch - 13XP Premium
WI--15188
Regular price $1,045.00RUNVA 13XP Premium Winch
SPECIFICATIONS
Rated Line Pull 13000lb (5897kg)
Motor - Series Wound (12V) 5.6kW/7.6HP - IP67 Rated
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 228:1
Brake Automatic Ratchet Load Holding in the gearbox
Synthetic Rope 11mm x 26.5m
Drum Size 63mm x 217m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 602mm x 160mm x 200mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Black Powder Coat
Net Weight 31.4kg
Gross Weight 33.4kg (includes packaging)
Warranty Limited Lifetime
This model features the newly designed gearbox with integrated ratchet braking system. The ENTIRE winch is IP67 rated. Another fantastic model crafted by Runva.
The winch is supplied with 3 mounting options for the latest style control box:
-Mount it over the winch motor
-Mount it over the drum
-Mount it on a winch bar
Ideal for most heavy duty 4X4 applications.
Carbon Winch - 12K - 12,000lbs CW-12K
WI--19220
Regular price $1,495.00Carbon Winches was designed and engineered by an Australian Offroad Business KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability and toughness being tested in some of the harshest environments in Australia and overseas including Iceland and the Middle East.
Many other products on the market simply didn't cut it in the Australian Outback including some very popular world renowned brands so we built our own. Now is the time to show the world the quality and reliability we have developed. and
NO FUSS WARRANTY -
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. The main features include:
• 6.2 HP Series Wound motor
• 216:1 ratio 3 stage planetary gearbox
• Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum – (No heat build up on drum)
• Rotating ring gear freespool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues.
• Power in and power out via a plug in hand remote or a wireless remote controller. Remote controller has auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
• 500amp sealed solenoid unit and wired handle remote control and wireless remote control unit
SPECIFICATIONS
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12’ (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (freespooling): Rotating Ring Gear
Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum.
Drum Diameter/Length: 2.5’’/8.8’’ (64mm/224mm)
Synthetic Rope: Black 24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 10’’ x 4.5’’ ( 254mm x 114.3 )
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: 19.5kg and VER.2 19.0KG
?
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg and
PLEASE NOTE: The product video shows a snatch block pulley. This product is an optional extra and is NOT included in the winch package. and
and
12V DC performance specs (first layer of drum) | |||
Line Pull |
Line Speed |
Motor |
Pull by layer |
0 |
43.3(13.2) |
70 amps |
1/12,000 (5450) |
2000 (910) |
11.5 (3.5) |
130 amps |
2/9800 (4450) |
4000 (1810) |
9.2(2.8) |
170amps |
3/8300 (3770) |
6000 (2720) |
7.9 (2.4) |
220amps |
4/7200 (3270) |
8000 (3630) |
6.9 (2.1) |
265 amps |
and |
10000 (4540) |
5.6 (1.7) |
320 amps |
and |
12000 (5450) |
4.6 (1.4) |
390 amps |
and
Carbon Winch 12k – Package contents included in purchase price | ||
Description |
Quantity |
Comment |
Carbon Winch CW-12K |
1 |
24mx10mm Synthetic Dyneema Rope |
Control box 500amp |
1 |
1pc 500A solenoid and battery cables + wireless remote 1 x long black battery cable |
Hand remote control & Wireless remote control |
and | Plug in and wireless operation |
CNC Billet Black Plate Hawse Fairlead |
and | Laser Etched Carbon Winches two position and fairlead |
Hardware bag |
6sets |
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. |
Owners Manual |
1pc |
and Included |
Carbon Winch Hook Kit |
1pc |
and Included |
Red Hook strap |
1pc |
and Included |
Electrical Cut out isolator switch Kit |
1pc |
Included - MUST BE INSTALLED AS PART OF THE KIT and
|

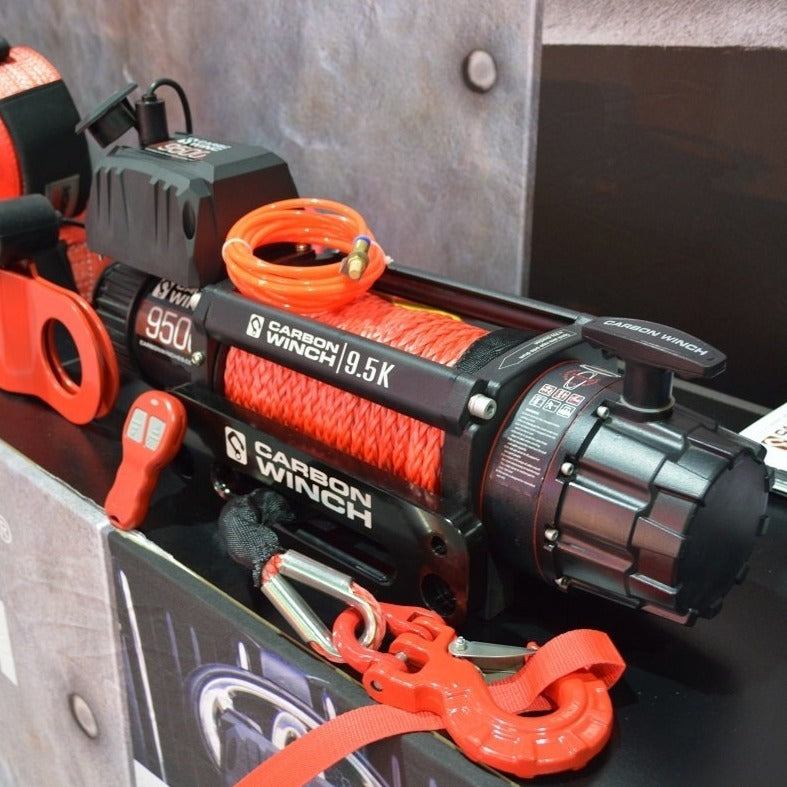

Carbon Winch - CW-95P - Carbon 9.5k winch 9500lbs
WI--16708
Regular price $995.00Carbon Winch - CW-95P - Carbon 9.5k winch 9500lbs
The Carbon Winch is the newest brand on the Australian Market. Backed by KPD Industries, we have spent 4 years developing this product to the point where it is now. We are highly confident it will fit your needs whatever they may be. We have spent time making sure that the little things have been addressed, fully sealed wireless receiver units, not just a split electronics box, rotating ring gear clutch making freespool engagement as easy as it can get, seals on all joins on the winch, making it as resistant to water and dust ingress as possible. Feel free to give us a call to talk about our product. We love it and we hope you will love it as well. Support an Aussie business giving it a go against the big corporates, we've got a lot riding on this product and we hope you can support us by spreading the word about our Carbon Winches.
and Designed by KPD Industries for our harsh Aussie conditions
and Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. and
and 9500lb fast line pull 158:1 planetary gearset ratio
and 6.2HP series wound electric motor
and 3 position solenoid box mounting bracket
and Battery Isolator Switch
and Wireless remote control unit with lanyard- FULLY SEALED RECEIVER UNIT
and Rotating ring gear clutch for easy low drag free spool
and Electroplated planetary gear sets for long life
Now with the new Multi Fit Fairlead no need to worry about which suits your bullbar!
NO FUSS WARRANTY -
5 year Water Ingress Warranty and
5 year electrical warranty on and motor / solenoid and unit
Limited lifetime gear train warranty and
Supported nationwide from Melbourne. Fast support via phone or email.
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
and
Carbon Winches 9.5P Winch is a 9500lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for an entry level winch user. The main features include:
6.2 HP Series Wound motor
158:1 ratio 3 stage planetary gearbox
Automatic brake in the gearbox housing end – (No heat build up on drum)
Rotating ring gear free spool clutch assembly which minimises free spool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. Remote controller has auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
500amp sealed solenoid unit with a 3 position mounting bracket allowing you to mount the control box over the motor, over the drum or remote mounted on the bull bar.
Handle remote control and wireless remote control
SPECIFICATIONS
Part number: CW-95P
Rated line pull: 9500 lbs, (4310 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12’ (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 158:1
Clutch (freespooling): Rotating Ring Gear
Brake: Full load automatic brake installed in the gearbox housing end. No heat on drum.
Drum Diameter/Length: 2.5’’/8.8’’ (64mm/224mm)
Synthetic Rope: 24m x 10MM
12V and DC and performance and specs and (first and layer and of and drum) | |||
Line and Pull Lbs.(Kgs.) |
Line and Speed FT./min(M/min.) |
Motor Current |
Pull and by and layer layer/Lbs(Kgs.) |
0 |
55.7(17) |
75 and amps |
1/9500 and (4310) |
2000 and (910) |
14.8 and (4.5) |
150 and amps |
2/8190 ((3720) and |
4000 and (1810) |
11.8(3.6) |
190amps |
3/7060(3200) |
6000 and (2720) |
8.9 and (2.7) |
260amps |
4/6080((2760) |
8000 and (3630) |
7.9 and (2.4) |
310 and amps |
and |
9500 and (4310) |
6.9 and (2.1) |
360 and amps |
and |
Carbon Winch 95P and – Package contents included in purchase price | ||
Description |
Quantity |
Comment |
Carbon Winch CW-95P |
1 |
24x10mm Synthetic UHMWPE Rope |
Control box 500amp |
1 |
1pc 500A solenoid and battery cables + wireless remote 1 x long black battery cable |
Hand remote control – |
and |
Plug in |
CNC Billet Black Plate Hawse Fairlead |
and |
Multi-fit - Laser Etched Carbon Winches Fairlead |
Hardware bag |
6sets |
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead to winch mounts. |
Owners Manual |
1pc |
and |
Carbon Winch Hook |
1pc |
and |
Red Hook strap |
1pc |
and |
Battery Isolator Switch |
1pc |
Included and |
Drivetech 4x4 Winch - 9500lbs Dual Speed DT-D9500SR
WI--17342
Regular price $1,220.00Drivetech 4x4 Winch - 12,000lbs Dual Speed DT-D12000SR
WI--17207
Regular price $1,260.00RUNVA - Winch - 11XP Premium
WI--2786
Regular price $975.00RUNVA 11XP Premium Winch
SPECIFICATIONS
Rated Line Pull 11000lb (4990kg)
Motor - Series Wound (12V) 4.9kW/6.5HP - IP67 Rated
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 228:1
Brake Automatic Ratchet Load Holding in the gearbox
Synthetic Rope 11mm x 26.5m
Drum Size 63mm x 223m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 574mm x 160mm x 200mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Black Powder Coat
Net Weight 31.4kg
Gross Weight 33.4kg (includes packaging)
Warranty Limited Lifetime
This model features the newly designed gearbox with integrated ratchet braking system. The ENTIRE winch is IP67 rated. Another fantastic model crafted by Runva.
Ideal for most 4X4 applications. This winch will also fit into most winch compatible bars available in Australia today.
